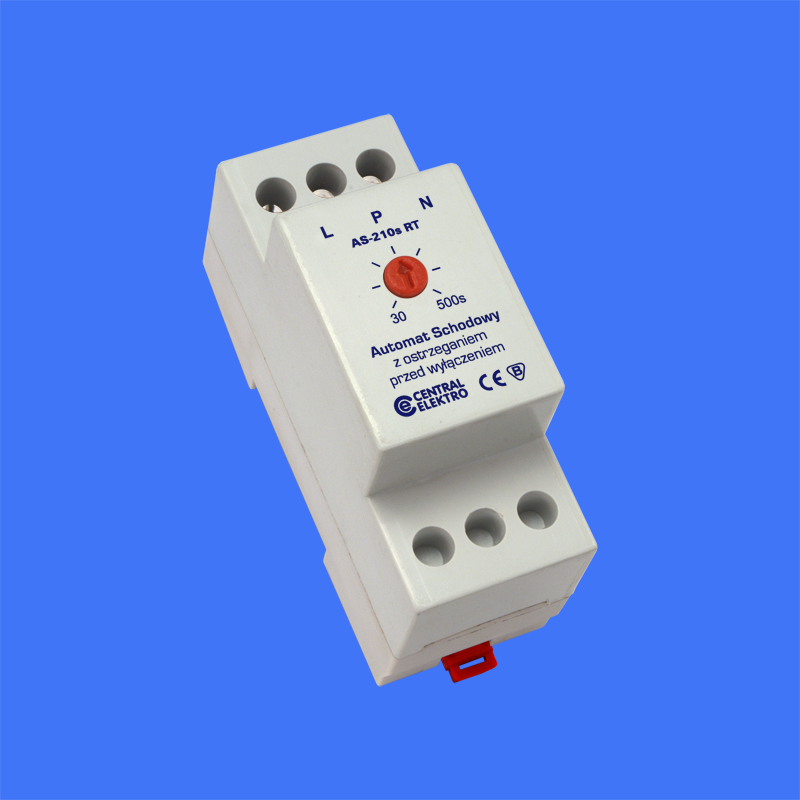

Staircase lighting time switch AS 210 sRT



Category: Staircase lighting time switches
Housing to mount on TH35 rail
Switch off pre-warning function
Download instruction AS 210 sRT 230V
Net price: 55,00 zł

Staircase lighting time switch automatically turn on and off the light in staircases and corridors inside buildings. They may be also used as simple time relays of stepless adjustable time for turning on various receivers for a set period of time.
Operation mode: continuous (C)
Noise level: normal (N)
Time of operation: adjustable 30 ÷ 500 s
Manner of time setting: stepless (knob)
Contact type: SPST - normally open
Contact rated current at cosφ=1): 16A
Rated voltage of the contact: 250V AC
Protection class: IP 20

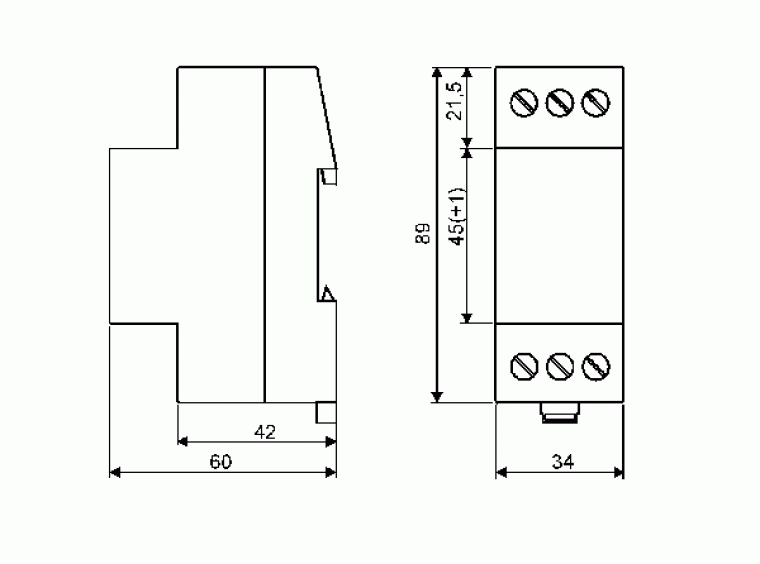

Housing dimentions: 89x34x60 mm
Weight: 80g
Connections: screw terminals
Manner of mounting: on TH35 rail

Maximum lamp rating:
- for bulbs and halogen lamps 1200VA
- for uncompensated fluorescent lamps 800VA
- for parallel-compensated fluorescent lamps 300VA
- for energy saving lamps 5x20VA

Rated supply voltage/frequency:
AS 210sRT 230V AC ± 10%, 50Hz
