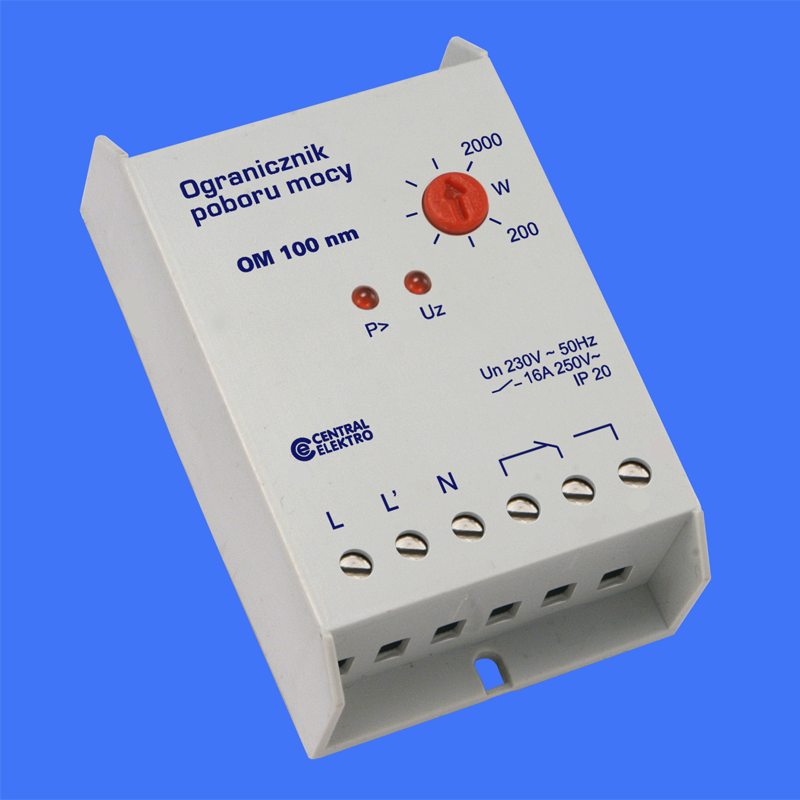

Power limiter OM 100 nm



Category: Power limiters
Small housing to on wall mounting
Download instruction OM 100 nm

Net price: 88,00 zł
In power limiter, NC contact does not return to closed position immediately. The relay cuts off power supply to the lighting circuit once the power consumption has exceeded the set value. Power supply is automatically restored 60 seconds after the reason of its switch off ceased to exist.

Operation mode: continuous (C)
Noise level: normal (N)
Switch off threshold: stepless adjustable
Range of settings: 200 ÷ 2000W
Switch off time: ca. 2 s
Return time: ca. 60 s
Contact type: SPDT- change-over
Rated voltage of the contact: 250V AC
Contact rated current at cosφ=1: 16A
Protection class: IP 20

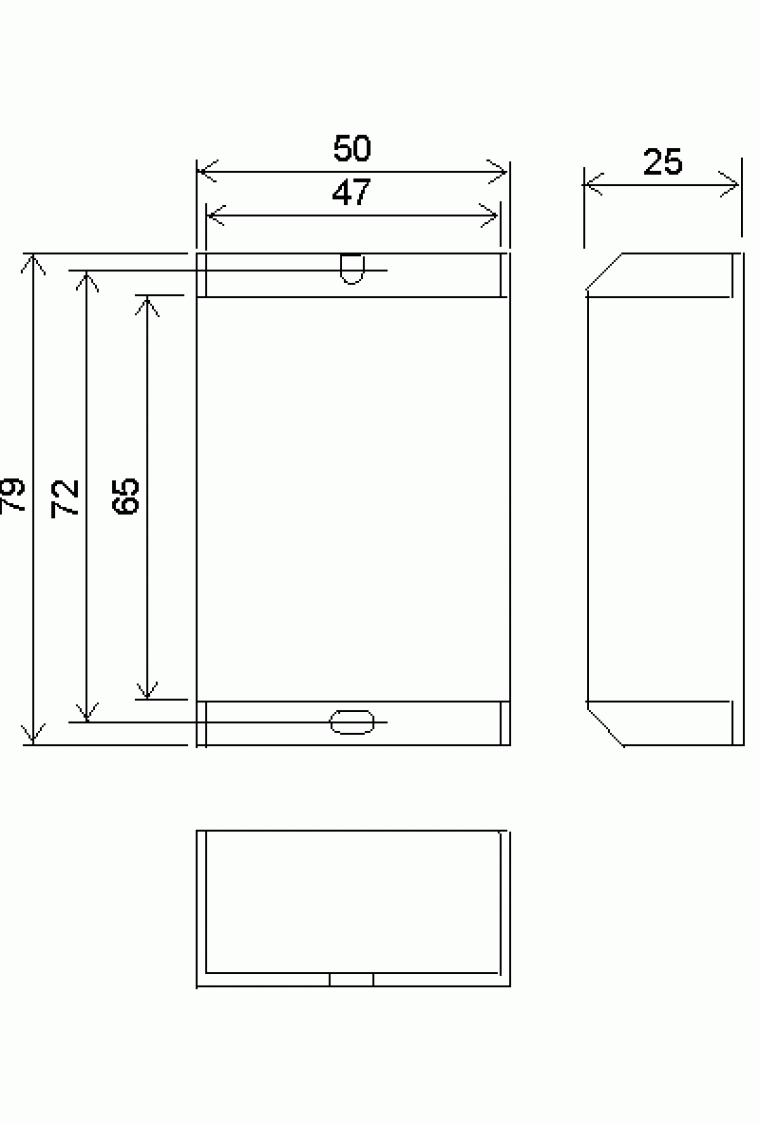

Housing dimentions: type NM, 79x50x25 mm
Connections: screw terminals 2 mm2
Manner of mounting: on wall, fastened with screws

Rated supply voltage:
OM 100 nm 230V AC, ± 10%, 50Hz
