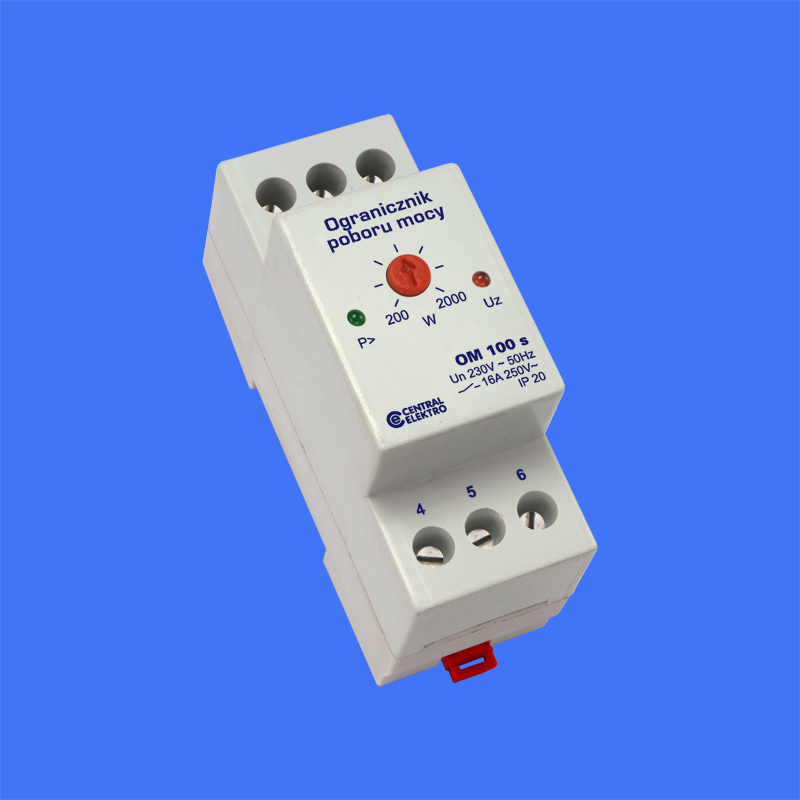

Power limiter OM 100 s



Category: Power limiters
Housing to mount on TH35 rail
Download instruction OM 100 s

Net price: 90,00 zł

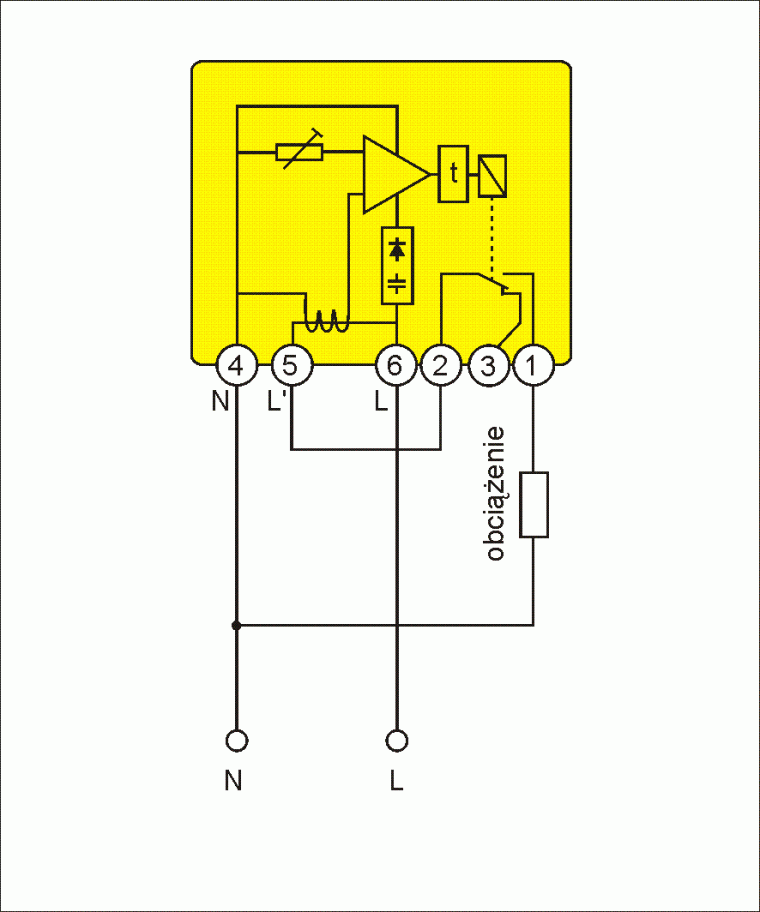

In power limiter, NC contact does not return to closed position immediately. The relay cuts off power supply to the lighting circuit once the power consumption has exceeded the set value. Power supply is automatically restored 60 seconds after the reason of its switch off ceased to exist.

Operation mode: continuous (C)
Noise level: normal (N)
Switch off threshold: stepless adjustable
Range of settings: 200 ÷ 2000W
Switch off time: ca. 2 s
Return time: ca. 60 s
Contact type: SPDT- change-over
Rated voltage of the contact: 250V AC
Contact rated current at cosφ=1: 16A
Protection class: IP 20

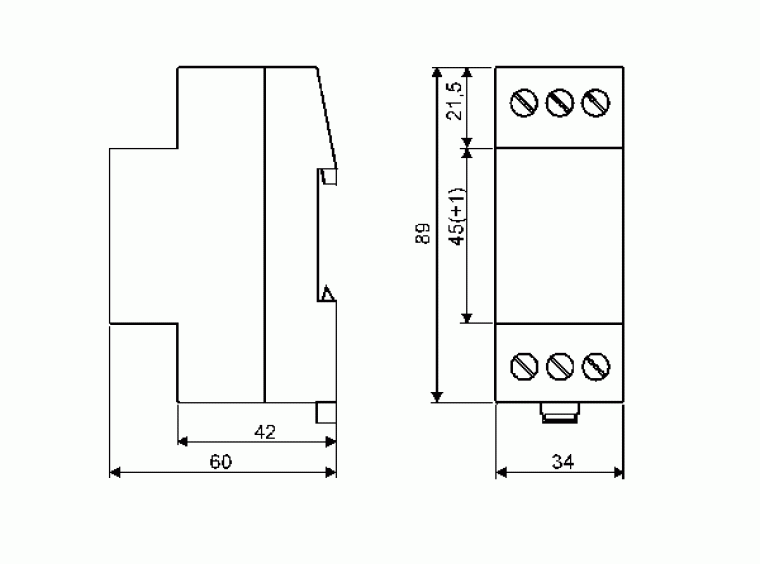

Housing dimentions: type S2, 89x34x60 mm
Connections: screw terminals 4 mm2
Manner of mounting: on TH35 rail

Rated supply voltage:
OM 100 s 230V AC, ± 10%, 50Hz
