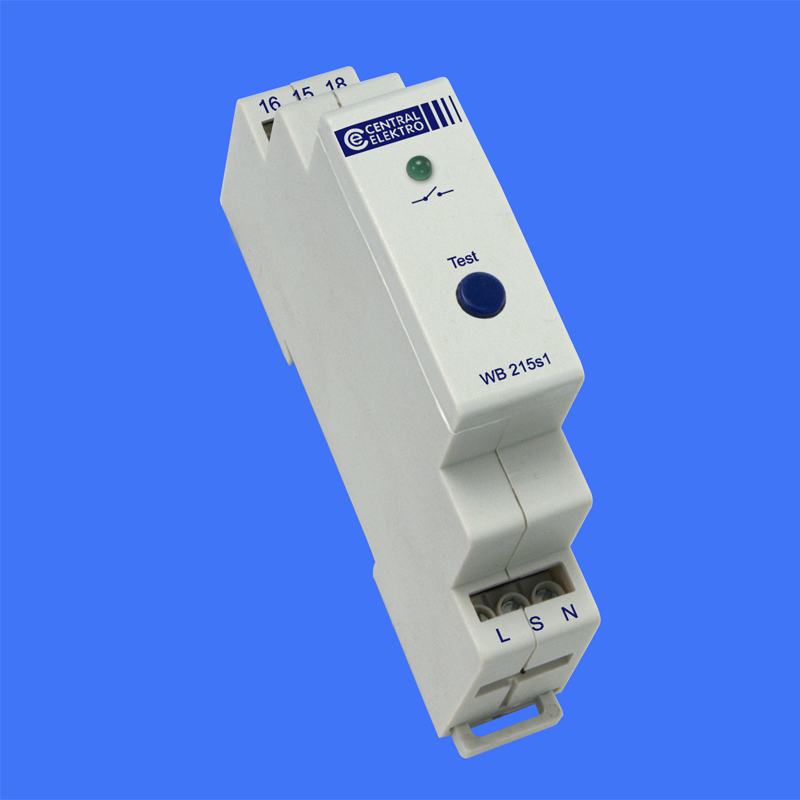

Latching relay WB 215 s1



Category: Latching relays
Housing to mount on TH35 rail (1 module)
Download instruction WB 215 s1 230V   24V

Net price: 38,00 zł

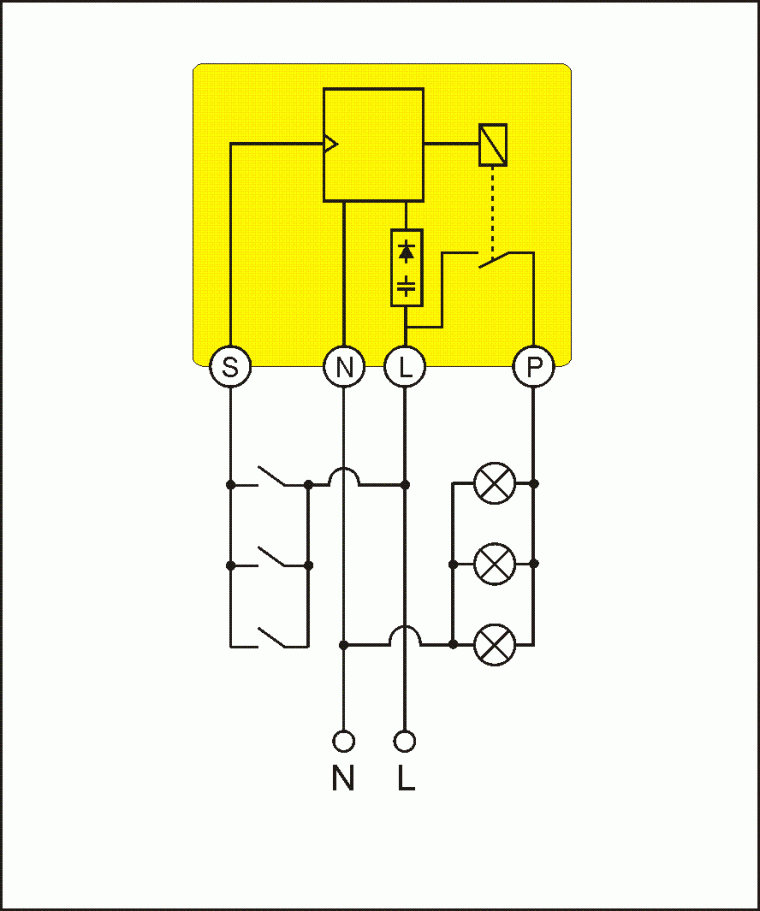

Latching relays are used for switching on/off the light (or other electric appliances) from any of freely selectable points by means of parallel-connected triggering push-buttons linked with the switch by means of two-conductor wire. Pressing any triggering push-button turns the light on and pressing the same or any other push-button second time turns the light off. Triggering push-buttons work currentlessly.
Operation mode: continuous (C)
Noise level: normal (N)
Contact type: SPST - normally open
Contact rated current (at cosφ=1): 16A
Rated voltage of the contact: 250V AC
Protection class: IP 20

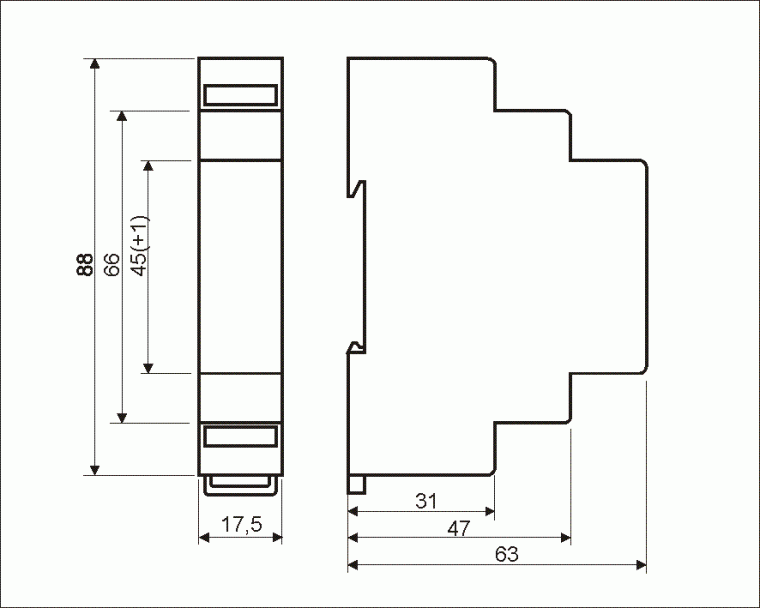

Housing dimentions: type S1, 88x63x17,5 mm (1 module)
Weight: 60g
Connections: screw terminals
Manner of mounting: on TH35 rail

Maximum lamp rating:
- for bulbs and halogen lamps 1200VA
- for uncompensated fluorescent lamps 800VA
- for parallel-compensated fluorescent lamps 300VA
- for energy saving lamps 5x20VA

Rated supply voltage/frequency:
WB 215 s1/230 230V AC ± 10%, 50Hz
WB 215 s1/24 24V AC/DC
