Twilight switch WZ 200n 10



Category: Twilight switches
Housing to mount on wall
Built-in internal photosensor
Download instruction WZ 200n 10 230V 24V

Net price: 37,00 zł

Twilight switch automatically turn on and off the light at dusk and dawn, respectively. They are particularly convenient for use in illumination systems of houses, shops and advertisements, etc. The twilight switches save your money and help to protect the environment by reduction of power consumption. Response threshold of twilight switch can be adjusted by user in the range of 5 to 100Lx.
Operation mode: continuous (C)
Noise level: normal (N)
Response threshold: adjustable 5 ÷ 100 Lx
Manner of setting: stepless (knob)
Contact type: SPST - normally open
Contact rated current (at cosφ=1): 10A
Rated voltage of the contact: 250V AC
Protection class: IP 54

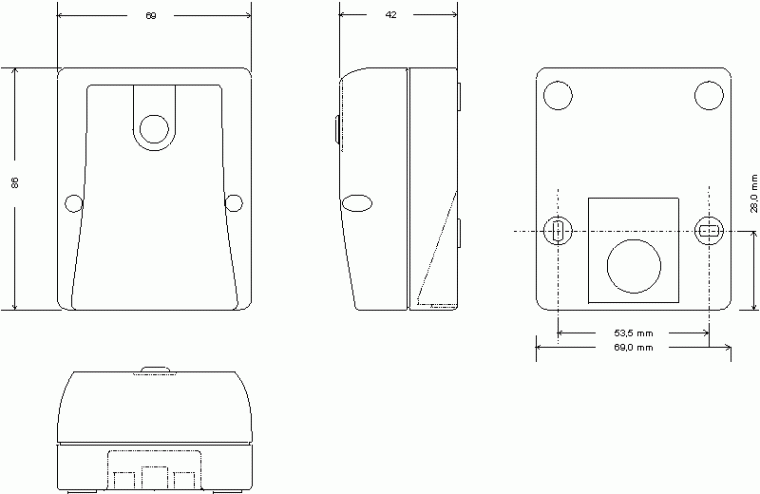

Housing dimentions: type NN, 86x69x42 mm
Weight: 100g

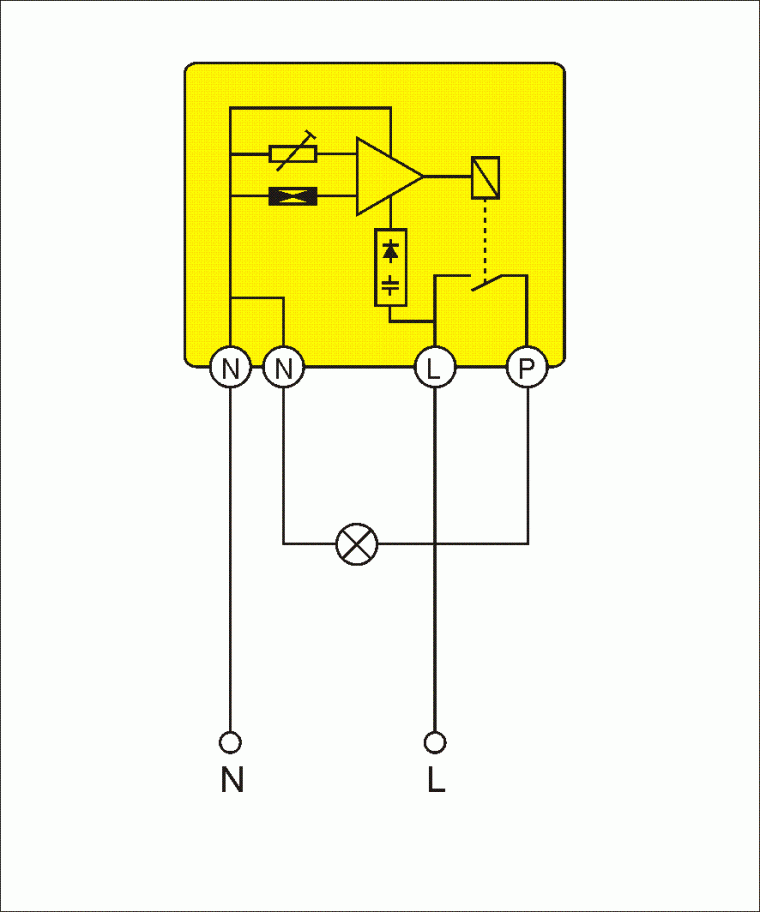

Connections: screw terminals
Manner of mounting: on wall, fastened with screws

Maximum lamp rating:
- for bulbs and halogen lamps 1000VA
- for uncompensated fluorescent lamps 700VA
- for parallel-compensated fluorescent lamps 200VA
- for energy saving lamps 3x20VA

Rated supply voltage/frequency:
WZ 200n 10/230 230V AC ± 10%, 50Hz
WZ 200n 10/110 110V AC
WZ 200n 10/24 24V AC
