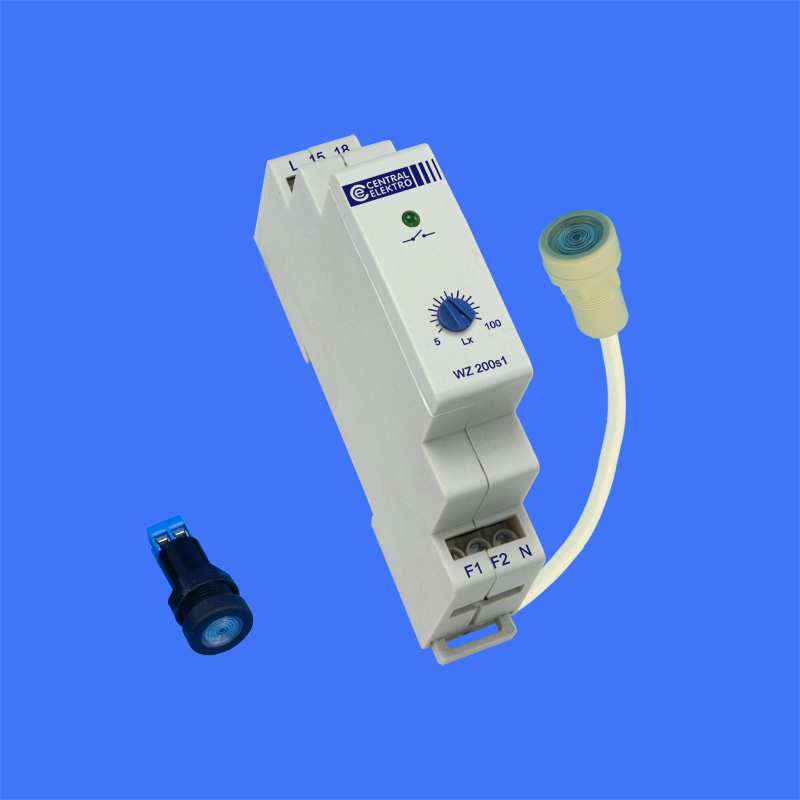

| Twilight switch WZ 200 s1 | |||
 |
|
Category: Twilight switches Housing to mount on TH35 rail External hermetic photosensor type CDS SP-12 or CDS Z-15 Download instruction WZ 200 s1  |
|
|
Net price: 54,00 zł + photosensor CDS SP-12 Net price: 56,00 zł + photosensor CDS Z-15 |
|||
 |
 |
||
Twilight switch automatically turn on and off the light at dusk and dawn, respectively. They are particularly convenient for use in illumination systems of houses, shops and advertisements, etc. The twilight switches save your money and help to protect the environment by reduction of power consumption. Response threshold of twilight switch can be adjusted by user in the range of 5 to 100Lx. |
|||
| Operation mode: | continuous (C) |
| Noise level: | normal (N) |
| Response threshold: | adjustable 5 ÷ 100 Lx |
| Manner of setting: | stepless (knob) |
| Contact type: | SPST - normally open |
| Contact rated current (at cosφ=1): | 16A |
| Rated voltage of the contact: | 250V AC |
| Protection class: | |
| - switch | IP 20 |
| - external photosensor | IP 64 |
| Housing dimentions: | typ S1, 88x63x17,5 mm (1 module) |
| Weight: | 85g |
| Connections: | screw terminals |
| Manner of mounting: | on TH35 rail |
| Maximum lamp rating: | |
| - for bulbs and halogen lamps | 1200VA |
| - for uncompensated fluorescent lamps | 800VA |
| - for parallel-compensated fluorescent lamps | 300VA |
| - for energy saving lamps | 5x20VA |
| Rated supply voltage/frequency: | |
| WZ 200s1/230 + czujnik CDS SP-12 | 230V AC ± 10%, 50Hz |
| WZ 200s1/24 + czujnik CDS SP-12 | 24V AC/DC |
| WZ 200s1/230 + czujnik CDS Z-15 | 230V AC ± 10%, 50Hz |
| WZ 200s1/24 + czujnik CDS Z-15 | 24V AC/DC |
